Honda 2 Pin Flasher Relay for LED Indicators
J-TECH Products
£7.95

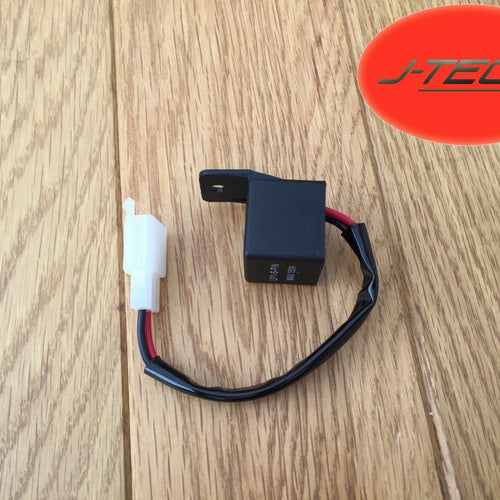

PLEASE CHECK THAT THE PLUG ON YOUR EXISTING RELAY MATCHES THE ONE PICTURE ABOVE BEFORE ORDERING.
This is the most common Flasher Relay used however as no fitment list is available, please check. Depending on What Year/Model your Motorcycle is it could well be different. Some of the newer Honda's come with the 4 pin Relay. This one is the 2 Pin Relay.
Fits
CBR 600 RR PC37 2003 - 2006. These Bikes do not Originally have a flasher Relay. Please see the 'youtube' tutorials of fitting one of these if you have this Bike, as its more complex than the typical Relay exchange.
CBR 900 RR SC28 SC33 1992 - 1998
CBR 900 RR SC44 2000 - 2001
CB 900 F HORNET SC48 SC01 2002 - 2006
CBR 1100 SC 35 1998
XL 1000 SD01 SD02 1999 - 2007
When replacing your bulbed Indicators to LED Indicators, you are required to replace the Flash Rate Relay, otherwise your Indicators will either Hyper Flash, or not Flash at all.
This Relay is also perfect if you plan on keeping Bulbed or LED Indicators on the Front.
Features：
- Size: 1" (L) x 1" (W) x 1" (D)
- Completely waterproof design
- Directly replace the OEM two-wire flasher
- Eliminate the need for tapping wires to install the load resistors
- Allow LED bulbs to blink at the normal rate
- Fits most Motorcycles such as Honda, Kawasaki, KTM, Suzuki, Yamaha and many other Makes/Models
|
Technical Characteristics |
|
|
Nominal Voltage |
12V |
|
Operating Voltage |
11V-15V |
|
Switch Current |
Min. 0.05A - Max. 12A |
|
Switch Load |
Min. 0.6W - Max. 150W |
|
Flashing Frequency |
90 times per min |
|
Operating Temperature |
-40°C to +80°C |
|
|
|
This Relay is also perfect if you plan on keeping Bulbed or LED Indicators on the Front.
